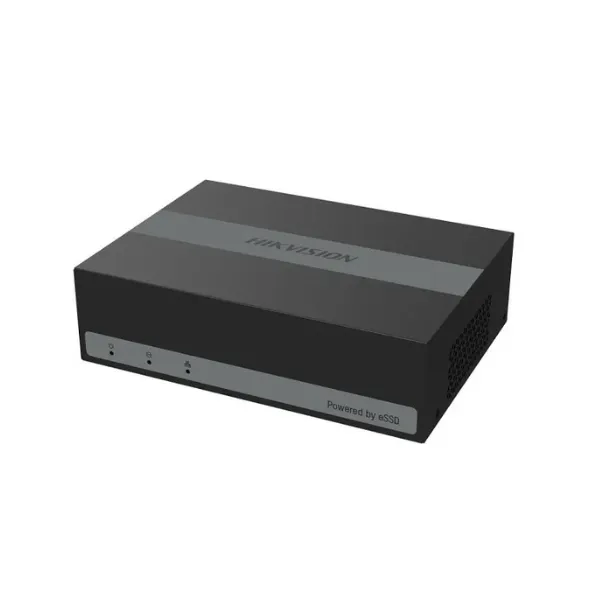

ĐẦU GHI HYBRID TVI - IP 5MP LITE H.265 Pro CHỐNG BÁO GIẢ & TÍCH HỢP Ổ CỨNG eSSD 1TB HIKVISION iDS-E04HQHI-D

3.094.000đ ~~4.420.000đ~~ -30%

Nhà sản xuất:

Hikvision

Mã sản phẩm:

iDS-E04HQHI-D

Tương thích với tín hiệu ngõ ra: 1-ch HDMI, 1-ch VGA.
Tiêu chuẩn nén hình ảnh: H.265 Pro/H.265.
Tích hợp ổ cứng eSSD với dung lượng 1TB.

Tình trạng:

Còn hàng

Số lượng:

Danh mục:

ĐẦU GHI HÌNH , HIKVISION

Mô tả
Bình luận

Mục lục [Ẩn]

Thông số kỹ thuật Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION iDS-E04HQHI-D
TCTTCAMERA - GIÁM SÁT THÔNG MINH 24/7

Thông số kỹ thuật Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION iDS-E04HQHI-D

Hỗ trợ video đầu vào: HDTVI/AHD/CVI/CVBS/IP.
Hỗ trợ 1 kênh camera IP.
Tương thích với tín hiệu ngõ ra: 1-ch HDMI, 1-ch VGA.
Tiêu chuẩn nén hình ảnh: H.265 Pro/H.265.
Tích hợp ổ cứng eSSD với dung lượng 1TB.
Motion Detection 2.0: Thuật toán phân tích người và xe chống báo động giả.
Kích thước (W × D × H): 151 × 121 × 46 mm.
Trọng lượng: ≤0.5kg.

Motion Detection 2.0
Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis	Up to 4-ch
Recording
Video Compression	H.265 Pro/H.265
Encoding Resolution	When 1080p Lite mode is not enabled: 3K Lite/5 MP Lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K Lite/5 MP Lite/4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
Frame Rate	Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K Lite@12 fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 5 MP stream access: 5 MP Lite@12fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 4 MP stream access: 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 3K Lite/5 MP Lite@12fps; 4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video Bitrate	According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
Stream Type	Video, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Video and Audio
IP Video Input	1-ch Up to 6 MP resolution Support H.265+/H.265 IP cameras
Analog Video Input	4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input	5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
AHD Input	4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25fps
HDCVI Input	4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25fps
CVBS Input	Support
HDMI Output	1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output	1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode	HDMI/VGA simultaneous output
Audio Input	4-ch via coaxial cable
Audio Output	1-ch via HDMI
Synchronous playback	4-ch
Network
Total Bandwidth	72 Mbps Incoming bandwidth: 4 Mbps
Remote Connection	32
Network Protocol	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
Network Interface	1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
Capacity	Built-in 1024 GB eSSD (960 GB available) Note: The device can store about 4 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only
USB Interface	Rear panel: 2 × USB 2.0
General
Power Supply	12 VDC, 1 A
Consumption	≤ 5.4 W (with eSSD)
Working Temperature	-10 °C to 45 °C (14 °F to 113 °F)
Working Humidity	10% to 90%
Dimension (W × D × H)	151 × 121 × 46 mm
Weight	≤ 0.5 kg (with eSSD, 1.1 lb.)
