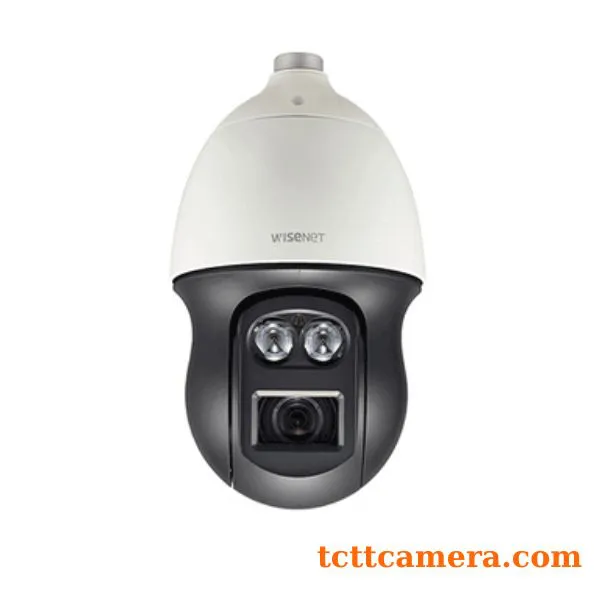

Thông số kỹ thuật Camera IP Speed Dome hồng ngoại 2.0 Megapixel WISENET XNP-6550RH/VAP
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải camera ip: 2.0 Megapixel (1920 x 1080).
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG codec.
- Ống kính: 4.75 ~ 261.4mm.
- Zoom quang: 55x.
- Tầm quan sát hồng ngoại: 500 mét.
- Hỗ trợ WiseStreamII.
- Hỗ trợ nhiều luồng.
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR (120dB).
- Chức năng phát hiện chuyển động, âm thanh thông minh.
- Chức năng chống sương mù Defog.
- Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC (dung lượng lên tới 512GB).
- Hỗ trợ âm thanh hai chiều.
- Tiêu chuẩn chống nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Chức năng cấp nguồn qua mạng PoE.
- Kích thước: Ø236.9 x 407.7mm.
- Trọng lượng: 7.1 kg.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch 2MP CMOS |
| Effective Pixels | 1945(H) x 1097(V) |
| Min. Illumination | Color: 0.02Lux(F1.6, 1/30sec) |
| BW: 0Lux(IR LED) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.75~261.4mm(55x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F6.5(Tele) |
| Angular Field of View | H: 58.6°(Wide)~1.23°(Tele) / V: 34.8°(Wide)~0.71°(Tele) |
| Min. Object Distance | 5m(16.40ft) |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan/Tilt/Rotate | |
| Pan Range | 360˚ Endless |
| Pan Speed | Preset: 400˚/sec, Manual: 0.024˚/sec~250˚/sec |
| Tilt Range | 95˚(-5˚~90˚) |
| Tilt Speed | Preset: 250˚/sec, Manual: 0.024˚/sec~250˚/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2˚ |
| Azimuth | Support |
| Auto Tracking | Support |
| Operational | |
| IR Viewable Length | 500m (1,640.42ft) |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, polygonal zones Support |
| Privacy Masking |
24ea, rectangular zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low/ Middle/ High |
| White Balance | ATW/ AWC/ Manual/ Indoor/ Outdoor |
| Electronic Shutter Speed | Minimum/ Maximum/ Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 4ea/ Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| PTZ Preset | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024x768, 800 x 600, 800 x 448, 720x576, 720 x 480, 640 x 480, 640x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) |
| MJPEG: Max. 30fps/25fps(60Hz/50Hz) | |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users)/ |
| profiles) | |
| Audio Compression | G.711 u-law /G.726 Selectable |
| G.726(ADPCM) 8KHz, G.711 8KHz | |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| AAC-LC: 48Kbps at 16KHz | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI(HTTP API) | |
| Wisenet open platform | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
| Recommended Browser: Google Chrome | |
| Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) | |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature/ Humidity | -50°C~+55°C (-122°F~+131°F) / Less than 90% RH |
| Start up should be done at above -30°C (HPoE Mode) | |
| Storage Temperature/ Humidity | -50°C~+60°C (-122°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Electrical | |
| Input Voltage | 24VAC, HPoE |
| Power Consumption | 24VAC: Max. 92W |
| HPoE: 60W | |
| Mechanical | |
| Color/Material | Body: Ivory/ Plastic, Head: Black/ Plastic |
| Product dimensions | Ø236.9 x 407.7mm |
| Weight | 7.1 kg |
- Sản xuất tại Việt Nam.
- Bảo hành: 24 tháng.
