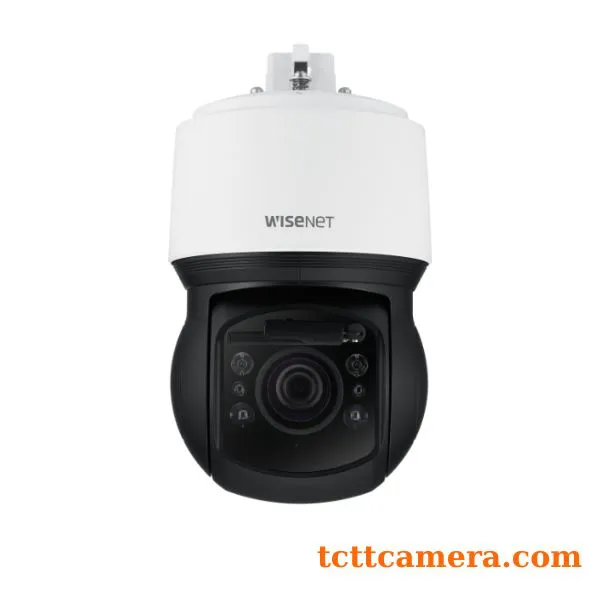

Camera IP Speed Dome hồng ngoại 6.0 Megapixel WISENET XNP-8300RW
- Camera IP Speed Dome hồng ngoại 6.0 Megapixel WISENET XNP-8300RW là một sản phẩm camera an ninh cao cấp được sản xuất bởi hãng Hanwha Techwin, một trong những nhà sản xuất hàng đầu về các giải pháp an ninh và giám sát.
Thông số kỹ thuật Camera IP Speed Dome hồng ngoại 6.0 Megapixel WISENET XNP-8300RW
- Cảm biến hình ảnh: 1/2.8-inch CMOS.
- Độ phân giải: 6.0 Megapixel.
- Chuẩn nén: H.264, H.265, MJPEG.
- Ống kính: 5~150mm.
- Zoom quang: 30x.
- Zoom số: 32x.
- Tầm quan sát hồng ngoại: 200 mét.
- Hỗ trợ các chức năng: Day & Night (ICR), extreme WDR, Intelligent Analytics, Object auto tracking(Person/Vehicle), Target lock tracking.
- Tiêu chuẩn chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Specifications
| Video | |
| Imaging Device | 1/2.8' CMOS |
| Resolution | 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.1Lux (F1.6, 1/30sec) BW: 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 5~150mm(30x) zoom (digital 32x, total 960x zoom) |
| Max. Aperture Ratio | F1.6(Wide) - F4.56(Tele) |
| Angular Field of View | H: 57.42°(Wide)~2.19°(Tele) / V: 33.54°(Wide)~1.25°(Tele) |
| Min. Object Distance | 3m(9.84ft) |
| Focus Control | Oneshot AF, Focus save |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Max. 500°/sec, Manual: 0.024°/sec~250°/sec |
| Tilt Range | 110°(-20°~90°) |
| Tilt Speed | Max. 350°/sec, Manual: 0.024°/sec~250°/sec |
| Sequence | Preset (300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.1°, Pan/Tilt correction |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR)/Color/BW/Schedule |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | Extreme WDR (120dB) |
| Digital Noise Reduction | SSNR V |
| Digital Image Stabilization | Support (built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular Support |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover |
| IR Viewable Length | 200m (656.17ft), Wise IR |
| Water Removal | Support (with wiper) |
| Auto Tracking | Object auto tracking (Person/Vehicle), Target lock tracking |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStream II |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS (SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA) Cyber security assuarance program UL CAP(UL 2900-1) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH(Non-condensing) Maximum Temperature based on NEMA-TS 2(2.2.7) : +74°C(+165°F) |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing) |
| Certification | IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9) |
| Input Voltage | HPoE (IEEE802.3bt, Class6, Type3, Injector included) |
| Power Consumption | Typical 20W, Max 42W |
| Mechanical | |
| Color / Material | White, Black / Aluminum+Polycarbontate |
| RAL Code | White: RAL9003 / Black: RAL9005 |
| Product Dimensions / Weight | Ø184.9x318.8mm/ 5.4Kg |
