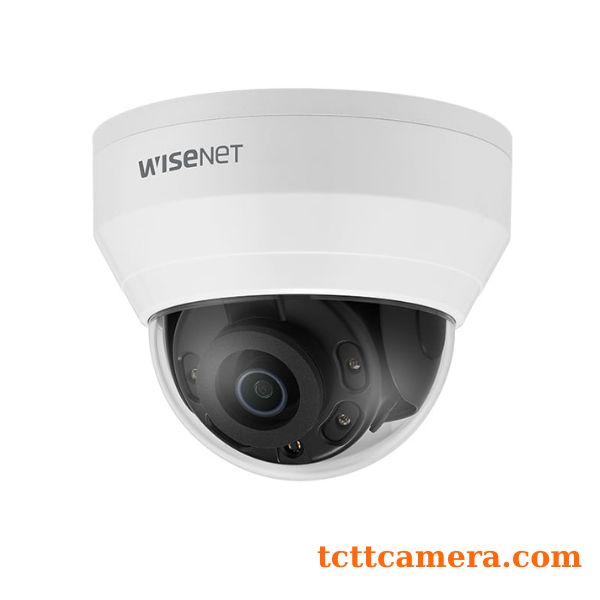

Camera IP Dome 5.0 Megapixel WISENET QND-8010R/VAP
- Bảo Hành: 24 tháng
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải camera ip: 5 Megapixel (2592 x 1944).
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Ống kính cố định: 2.8mm.
- Độ nhạy sáng: 0.15Lux (Color), 0Lux (B/W, IR LED on).
- Tầm quan sát hồng ngoại: 20 mét.
- Hỗ trợ chức năng Ngày & Đêm, chống ngược sáng WDR (120dB).
- Chức năng đặc biệt: Giả mạo, phát hiện chuyển động, phát hiện lệch tâm.
- Chế độ xem hành lang, hỗ trợ WiseStream II.
- Khe cắm bộ nhớ Micro SD/ SDHC/ SDXC (tối đa 128GB).
- Chức năng cấp nguồn qua mạng PoE.
Đặc tính kỹ thuật
| Model | QND-8010R/VAP |
| Video | |
| Imaging Device | 1/2.8 inch 5MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Min. Illumination | Color: 0.15Lux (F2.0, 1/30sec), BW: 0Lux (IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480 (N), 720x576( P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 104.7°/ V: 76.5°/ D: 136.0° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| IR Viewable Length | 20m |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Network | |
| Ethernet | RJ-45 (10/ 100 BASE-T) |
| Video Compression Format | H.265/H.264: Main/High, MJPEG |
| Resolution | 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Smart Codec | WiseStream II |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI (HTTP API) | |
| Wisenet open platform | |
| General | |
| Input Voltage / Current | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 7.5W, typical 5.8W |
| Dimension (WxHxD) | Ø110.6 x 89.5mm |
| Weight | 360g |
